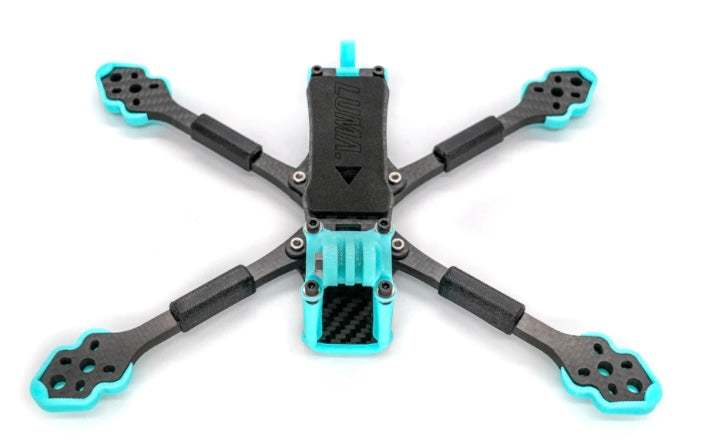

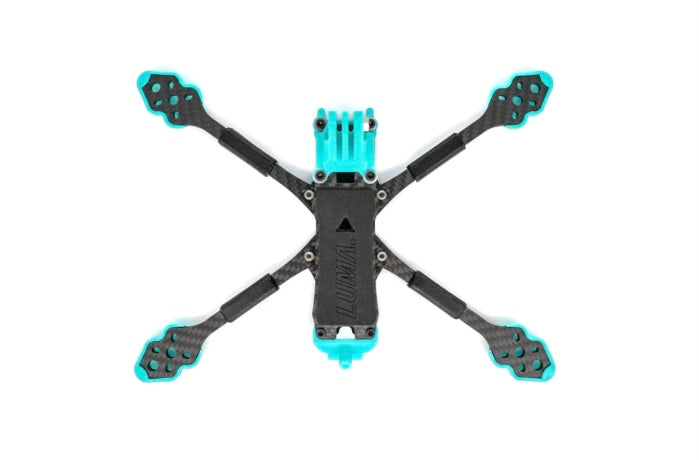

LUMA 55 FULL FRAME KIT

Regular price $144.95
Regular price $144.95 Sale price $144.95
Sale Sold out

All items shipped next day


Meet the Luma 55 - expertly designed to surpass the limitations of conventional 5-inch quadcopters and help you create and share amazing cinematic content with the world.

Why opt for a 5.5" instead of a regular 5" drone?

The explanation is simple: the 5" quad became popular during the time when the GoPro Session camera was the preferred choice for many pilots as they were drawn to the flight feel of a 5" quadcopter carrying the GoPro Session.

However, fast forward to the present day, and most pilots now demand the advanced features and quality of today's full-sized GoPro cameras. This is where the 5.5" comes in, providing extra thrust and performance beyond what a standard 5" can offer, to accommodate the heavier GoPro cameras we now love and use.

The Luma 55 strikes a perfect balance between the agility of a 5-inch freestyle drone and the planted feel of a 6-inch cinematic cruiser, creating a harmonious blend of speed and stability perfect for cinematic work.

With the Luma 55, you can effortlessly track and follow fast-moving subjects such as drift cars, boats, and motorbikes, capturing stunning footage with precision and ease.

Need help building a Luma 55?

Complete ready to fly drones available now

v1.1 update: Now in Ultra Matte plain carbon for a more premium finish, rear 25.5x25.5 Hard mounting for Air Unit 03*

*(requires m1.6 bolt kit sold separately)



Frame Key features.

  • 160G FRAME WEIGHT (CARBON, HARDWARE AND TPU)

  • 245.7MM WHEELBASE

  • SUPPORT FOR UP TO 5.5" PROPS

  • MAIN 20X20 STACK SUPPORT.

  • REAR 20X20 AND 25.5X25.5 STACK SUPPORT

  • HD VISTA & AO3 / ANALOG COMPATIBLE.

  • REPLACEABLE 6X8MM ARMS. (SINGLE DESIGN)

  • 16 TO 19MM M3 MOTOR MOUNTS.

  • 2.5MM TOP AND BOTTOM PLATES.

  • 2MM MID PLATE

  • VIBRATION DAMPENED MAIN STACK MOUNTING.

  • SUPPORTS ALL MINI TO NANO SIZED FPV CAMERAS AS WELL AS THE NEW AIR UNIT 03 CAMERA.

  • T300 ULTRA MATTE CARBON FIBRE.

  • YFS 12.9 GRADE STEEL HARDWARE BOLTS.

  • COMPLETE 3D PRINTED PARTS KIT.



Optional Mounts and other 3d printed parts for these kits can be found here

Pre Built Luma 55 Drones (BNF) available here

Optional GoPro Vertical Mounts can be found here



















Got questions?
Check out the FAQ page and you'll most likely find the answer there, if not send us a message via the contact page.



Kit Contents:


Hardware: Carbon:
5x 28mm Aluminum standoff. 1x 2.5mm Top-plate.
3x 20mm Aluminum standoff. 1x 2mm Mid-plate.
14x Steel M3 12mm. (12.9 grade) 1x 2.5mm Bottom-plate.
9x Steel M3 10mm. (12.9 grade) 4x 6x8mm Arms.
7x M3 Steel Washer.
9x M3 Steel Pressnut. Extras:
5x M3 Silicone soft-mount gummies. 4x Zip ties.
1x M5 Steel Clinch Nut. 2x Luma 250mm Lipo Straps.
1x
M5 20mm Flathead Bolt. 1x 3mm Foam Battery Pad.
5x M3 Steel 20mm. (12.9 grade)
5x M2 Steel 20mm. (12.9 grade)
5x M2 Steel Nut
TPU parts:
1x Front bumper.
4x Arm Bumpers.
4x Arm Wire Protectors.
4x
Mini to Nano FPV camera mounts.
2x Front Air unit 03 Camera mounts.
1x Front GoPro Hard mount.
1x
Rear Vista antenna and T mount.
1x Rear SMA antenna and T mount.
1x 20x20 M3 stack RX mount.
1x 20x20 M2 stack RX mount.
