RadioMaster Ranger Micro ELRS Module TX ExpressLRS 2.4Ghz

Regular price $89.99
Regular price $89.99 Sale price $89.99
Sale Sold out

All items shipped next day

RadioMaster Ranger Micro ELRS Module TX ExpressLRS 2.4Ghz













Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Features

  • High-efficiency cooling system
  • Up to 1Watt Power output
  • Wifi and Bluetooth support
  • Packet rates up to F-1000Hz
  • T-antenna included
  • With the Micro connector, support TX16S MKII and TX12 MKII radio



Specification

  • Item: Ranger Micro Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux,as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz - 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Wifi Support: Yes
  • Bluetooth support: Yes

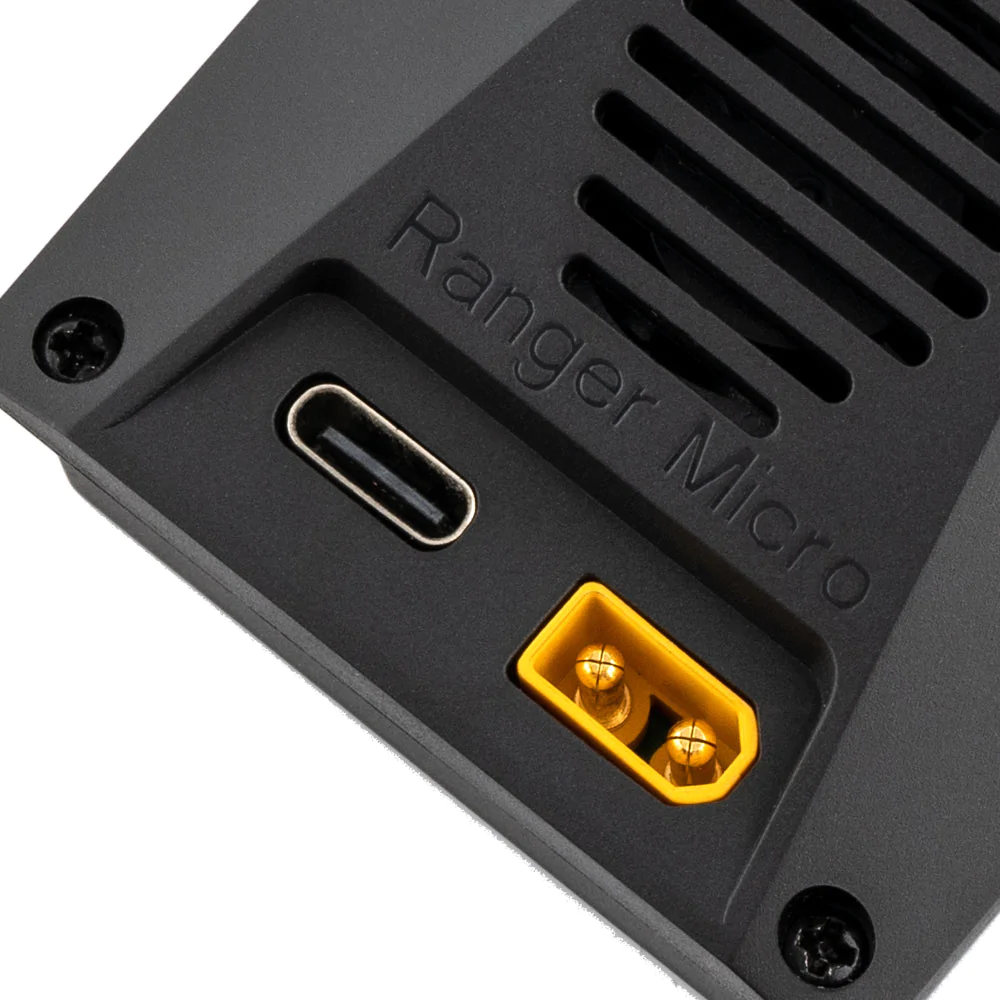

  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight:  50g (with antenna) / 40.5g (without antenna)
  • Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)



Package Includes

  • 1x Ranger Micro Module
  • 1x T Antenna
