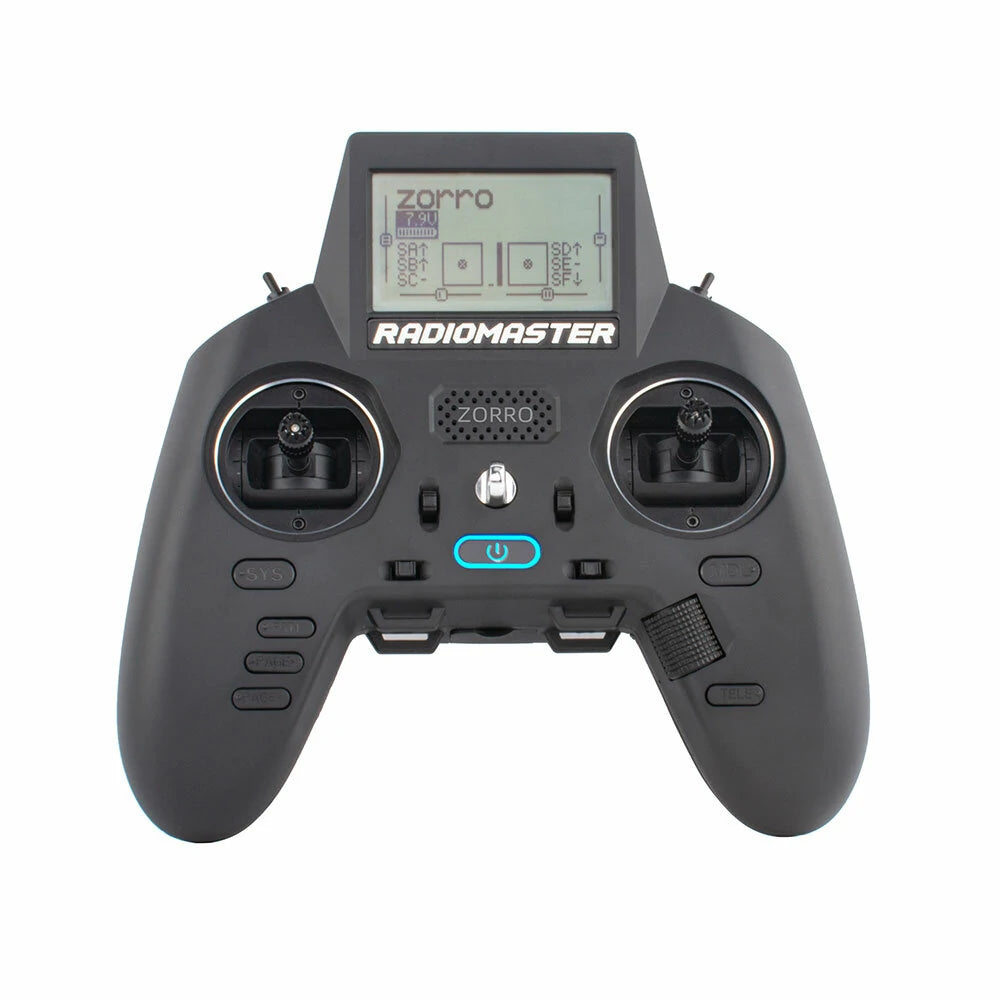

RadioMaster Zorro 2.4GHz Hall Sensor ELRS Inc Batteries

Regular price $255.00
Regular price Sale price $255.00
Sale Sold out

All items shipped next day


****Please Note this is JP4in1 Version- 18350 batteries NOT Included****

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter with RC Receiver & TBS Nano Crossfires Module Combo Set for RC Drone


Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.


Brand Name: RadioMaster

Item Name: Zorro Radio Transmitter

Weight: 350g

Size: 170*159*108 mm

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

RF power: CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain: Folding 2db

Operational current: 160mA@8.4V

Operational voltage: 6.6-8.4v DC

Control distance: > 2km @ 20dbm

Operating system: OpenTX / EdgeTX Compatible

Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome LCD

Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Gimbal: Hall-effect

Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)

Firmware Upgrade method: Via USB or SD card (SD Not included)

CC2500 Version:

Frsky, Futabas SFHSS. Hitec, RadioLink, Esky. Corona etc

4IN1 Version:

A7105 – Flysky, Hubsan, AFHDS2A etc

CC2500- Frsky, Futabas SFHSS. Hitec, RadioLink etc

CYRF6936 – DSM/DSMX, Walkera Devo, Wfiy etc

NRF24LO1 – Hisky, Syme. ASSAN etc

Radio Firmware:

RF Firmware:

CC2500 & 4-in-1 Multi-module:






Package Included:



1 x Zorro Radio Transmitter (Optional Version)



1 x EP2 ELRS RC Receiver (Only ELRS Starter Set)



2 x EP1 ELRS RC Receiver (Only ELRS Starter Set)



1 x TBS Nano Crossfires TX Module (Only CC2500+Nano Crossfires/4IN1+Nano Crossfires)





Zorro Radio Control Specs
  Versions Zorro Radio Control
Zorro Radio Control  4in1 Zorro Radio Control ELRS Zorro Radio Control
ELRS Starter Set
Zorro Radio Control CC2500 + TBS Nano Crossfires Combo
  Physical dimensions 170*159*108mm
  Weight 350 grams
  Operating frequency 2.400GHz-2.480GHz
  Internal RF Options CC2500 multi-protocol 4-in-1 multi-protocol ELRS CC2500 multi-protocol
  Supported protocols Module dependent Module dependent ELRS Module dependent
  RF power CC2500: 20dBm max. 4-in-1: 20dBm max. Up to 150mw ( CE & FCC Versions will be available) CC2500: 20dBm max.
  Antenna gain Folding 2db
  Operational current 160mA@8.4V
  Operational voltage 6.6-8.4v DC
  Control distance > 2km @ 20dbm > 2km @ 20dbm Receiver and Power Output dependant > 2km @ 20dbm
  Operating system OpenTX / EdgeTX Compatible
  Control channels Maximum 16 (Rx dependent)
  Display 128*64 Monochrome LCD
  Battery 2 x 18350 (Not included)
  Charging Built in USB-C Charging
  Gimbal Hall-effect
  Module bay Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
  Firmware Upgrade
Via USB or SD card (SD Not included)
