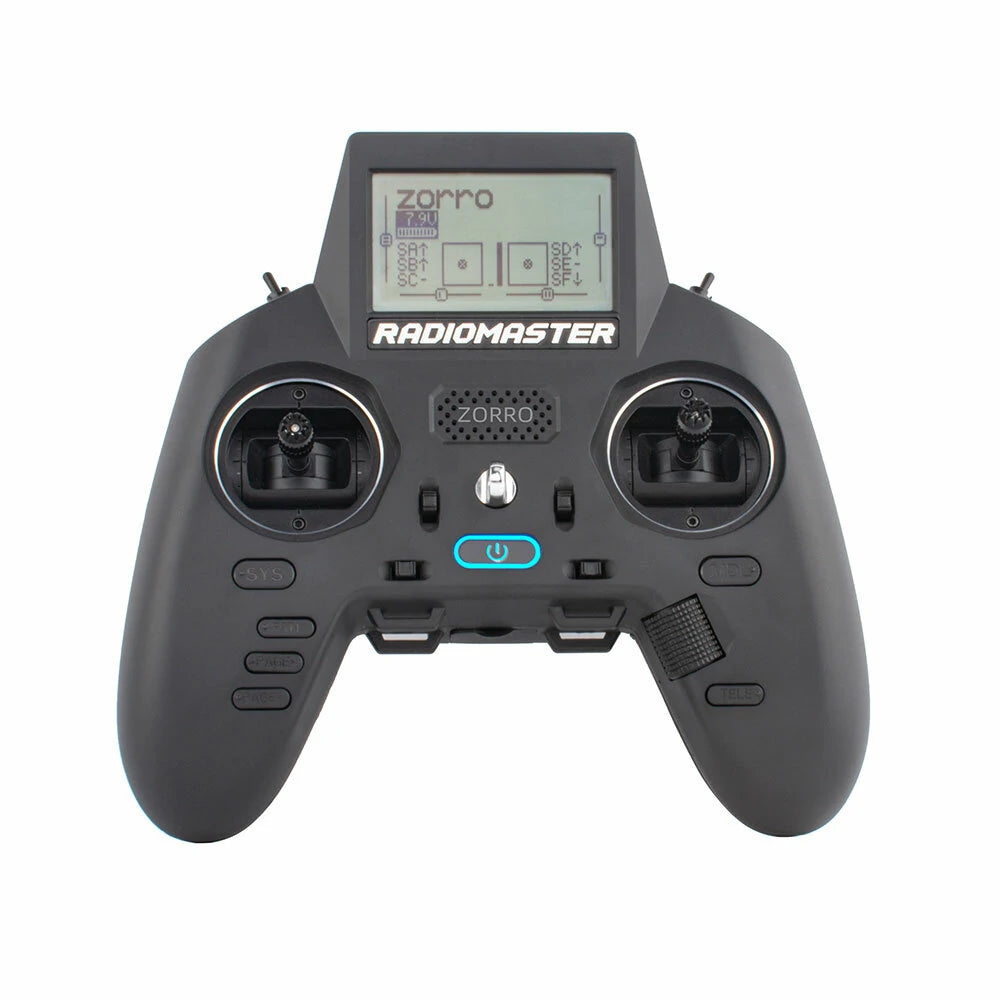

RadioMaster Zorro 2.4GHz Hall Sensor JP4IN1 Inc Batteries Mode 2

Description

****Please Note this is JP4in1 Version- 18350 batteries NOT Included****

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter with RC Receiver & TBS Nano Crossfires Module Combo Set for RC Drone

OVERVIEW:

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Description:

Brand Name: RadioMaster

Item Name: Zorro Radio Transmitter

Weight: 350g

Size: 170*159*108 mm

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

RF power: CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain: Folding 2db

Operational current: 160mA@8.4V

Operational voltage: 6.6-8.4v DC

Control distance: > 2km @ 20dbm

Operating system: OpenTX / EdgeTX Compatible

Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome LCD

Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Gimbal: Hall-effect

Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)

Firmware Upgrade method: Via USB or SD card (SD Not included)

CC2500 Version:

Frsky, Futabas SFHSS. Hitec, RadioLink, Esky. Corona etc

4IN1 Version:

A7105 – Flysky, Hubsan, AFHDS2A etc

CC2500- Frsky, Futabas SFHSS. Hitec, RadioLink etc

CYRF6936 – DSM/DSMX, Walkera Devo, Wfiy etc

NRF24LO1 – Hisky, Syme. ASSAN etc

Radio Firmware:

https://www.open-tx.org/

http://edgetx.org/

RF Firmware:

CC2500 & 4-in-1 Multi-module: https://www.multi-module.org/basics/supported-protocols

ELRS: https://github.com/ExpressLRS/ExpressLRS

Package Included:

1 x Zorro Radio Transmitter (Optional Version)

1 x EP2 ELRS RC Receiver (Only ELRS Starter Set)

2 x EP1 ELRS RC Receiver (Only ELRS Starter Set)

1 x TBS Nano Crossfires TX Module (Only CC2500+Nano Crossfires/4IN1+Nano Crossfires)

Zorro Radio Control Specs
Versions	Zorro Radio Control CC2500	Zorro Radio Control  4in1	Zorro Radio Control ELRS	Zorro Radio Control ELRS Starter Set	Zorro Radio Control CC2500 + TBS Nano Crossfires Combo
						Physical dimensions	170*159*108mm
Weight	350 grams
Operating frequency	2.400GHz-2.480GHz
Internal RF Options	CC2500 multi-protocol	4-in-1 multi-protocol	ELRS		CC2500 multi-protocol
Supported protocols	Module dependent	Module dependent	ELRS		Module dependent
RF power	CC2500: 20dBm max.	4-in-1: 20dBm max.	Up to 150mw ( CE & FCC Versions will be available)		CC2500: 20dBm max.
Antenna gain	Folding 2db
Operational current	160mA@8.4V
Operational voltage	6.6-8.4v DC
Control distance	> 2km @ 20dbm	> 2km @ 20dbm	Receiver and Power Output dependant		> 2km @ 20dbm
Operating system	OpenTX / EdgeTX Compatible
Control channels	Maximum 16 (Rx dependent)
Display	128*64 Monochrome LCD
Battery	2 x 18350 **INCLUDED**
Charging	Built in USB-C Charging
Gimbal	Hall-effect
Module bay	Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
Firmware Upgrade method	Via USB or SD card (SD Not included)
