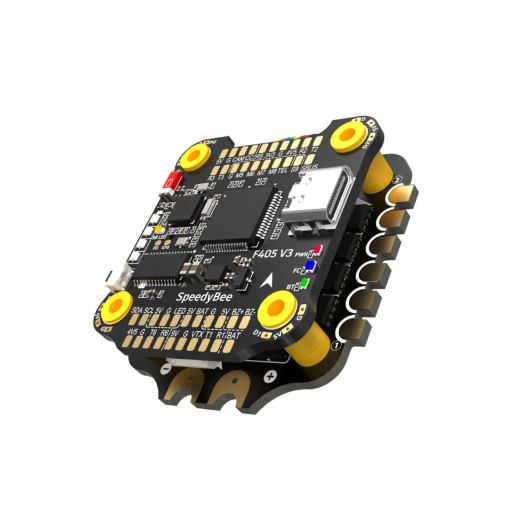

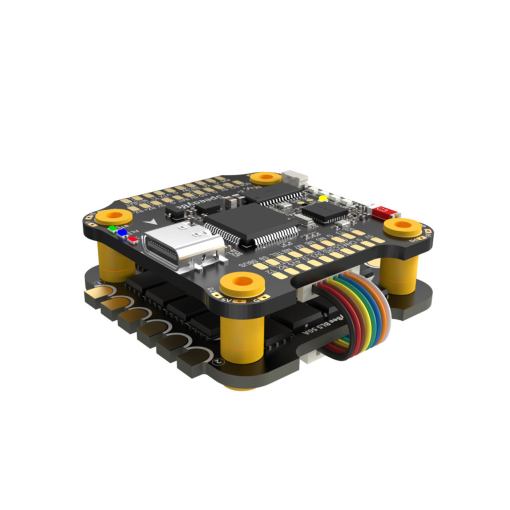

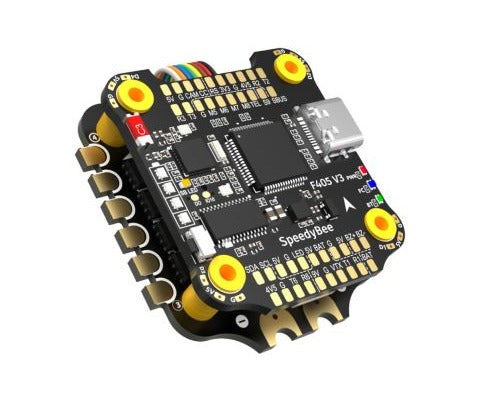

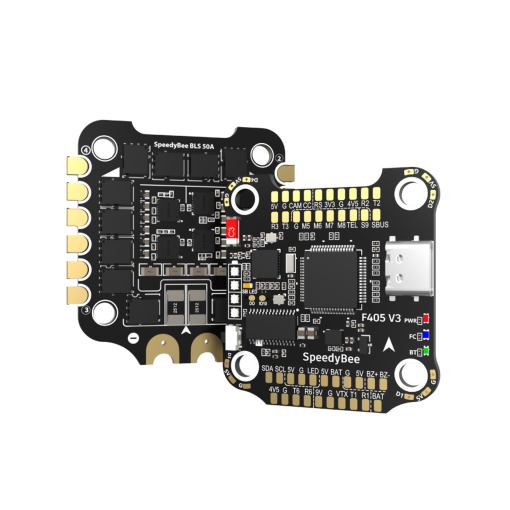

SpeedyBee F405 V3 BLS 50A Stack
You will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB
Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app.
Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app.
Don’t forget about the powerful 50A 4-in-1 ESC, built with TVS protective diode + Japan made TDK SMT capacitors + external 1500uF low ESR capacitor, everything is for durable build and smooth flight.
Top-shelf spec at a crazy low price, what are you waiting for!
Configure your FC and ESC via Bluetooth With SpeedyBee app, turn your phone into an all-in-one FC configurator and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC experience with SpeedyBee app.
Experience wireless, fully configurable ESC experience with SpeedyBee app.

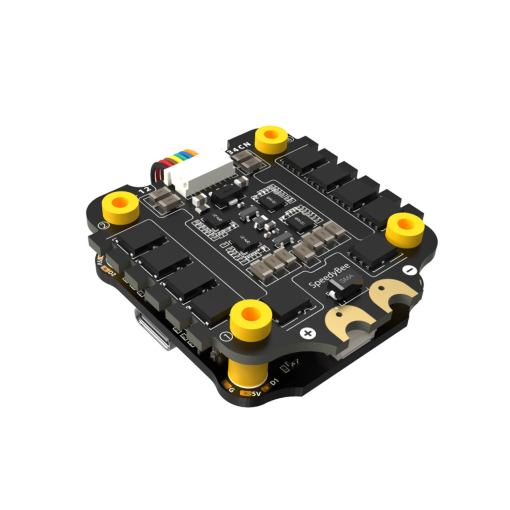

Powerful Real 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
Forgot your LiPo checker?
Just look at the FC! Built with a 4-level LED battery indicator, now you can fly anywhere worry-free – even without your lipo checker!
Just look at the FC! Built with a 4-level LED battery indicator, now you can fly anywhere worry-free – even without your lipo checker!
8 motors output for X8/Y6/ fixed-wings
You could use this stack to build your X8 drones, Y6 drones or fixed wings.
Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure everything in the SpeedyBee app.
Change motor directions wirelessly!
Finishing your latest build? Just replaced your motor after a crash?
Take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app.
Take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app.
Works for all BLHeli32 / BLHeli_S / BlueJay ESCs.
4 sets of LED pads with simple switching
Need more visibility at night? Just solder up your LED strips* and blaze the darkest trail you can find.
With just one tap on the BOOT button, you can cycle through all different LED presets** and pick the one you love!
**Or long press the boot button to switch to Betaflight LED mode
**Or long press the boot button to switch to Betaflight LED mode
1500uF Low ESR capacitor + TVS protective diode = Extra protection
The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props.
We also provide a humongous 1500uF low ESR capacitor, ensuring clean data from the gyro to the FC.
And packaged with more useful features
● Built-in barometer for accurate height calculation
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A + 5V 2A individual BECs
● 4 x UARTs for your receiver + VTX + camera + GPS.
● Power your GPS with a USB cable – no battery needed. No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A + 5V 2A individual BECs
● 4 x UARTs for your receiver + VTX + camera + GPS.
● Power your GPS with a USB cable – no battery needed. No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC),
so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the card MUST be formatted with the FAT16 or FAT32
(recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this 3rd party formatting tool and choose ‘Overwrite format’ then format your card. Also check out here for
the recommended SD cards or buy the tested cards from our store.
(recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this 3rd party formatting tool and choose ‘Overwrite format’ then format your card. Also check out here for
the recommended SD cards or buy the tested cards from our store.
Dimensions
Wiring Diagram
Specifications:

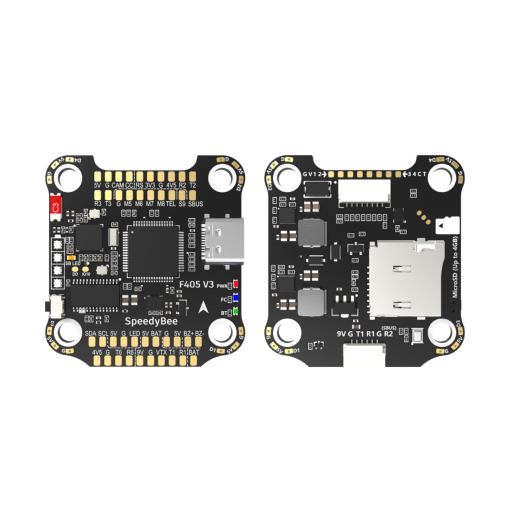

- Product Name SpeedyBee F405 V3 30×30 Flight Controller
- MCU STM32F405
- IMU(Gyro) BMI270
- USB Port Type Type-C
- Barometer Built-in
- OSD Chip AT7456E chip
- BLE Bluetooth Supported. Used for Flight Controller configuration
- DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.
- Blackbox MicroSD Card Slot Supported. Please use ≤4GB SDSC/SDHC microSD card and should be formatted to FAT16/FAT32 format. Don’t use SDXC cards. Note: Betaflight can only recognize 4GB max.
- BetaFlight Camera Control Pad Yes(CC pad on the front side)
- Current Sensor Input Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0.
- Power Input 3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
- 5V Output 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 2A.
- 9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 2A.
- 3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
- 4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
- ESC Signal M1 – M4 on bottom side and M5-M8 on front side.
- UART 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)
- ESC Telemetry UART R4(UART4)
- I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
- Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
- Buzzer BZ+ and BZ- pad used for 5V Buzzer
- BOOT Button Supported.
- [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
- [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
- RSSI Input Supported. Named as RS on the front side.
- SmartPort Use any TX pad of UART for the SmartPort feature.
- Supported Flight Controller Firmware BetaFlight(Default), EMUFlight, INAV
- Firmware Target Name SPEEDYBEEF405V3
- Mounting 30.5 x 30.5mm( 4mm hole diameter)
- Dimension 41.6(L) x 39.4(W) x 7.8(H)mm
- Weight 9.6g

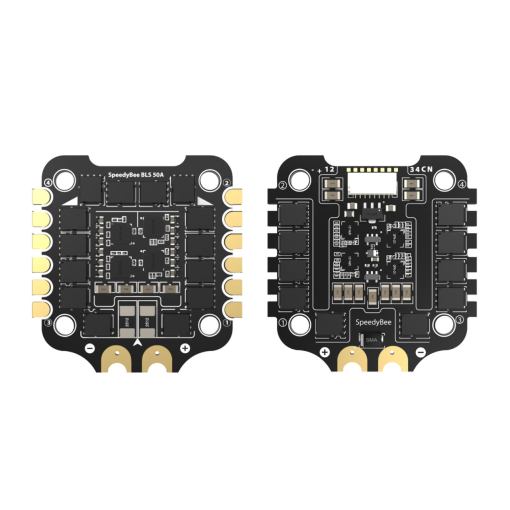

- Product Name SpeedyBee BLS 50A 30×30 4-in-1 ESC
- Firmware BLHeli_S JH50
- Wireless Configuration Full Configuration Supported in the SpeedyBee app
- PC Configurator Download Link https://esc-configurator.com/
- Continuous Current 50A * 4
- Burst Current 55A(5S)
- TVS Protective diode Yes
- External Capacitor 1500uF Low ESR Capacitor(In the package)
- ESC Protocol DSHOT300/600
- Power Input 3-6S LiPo
- Power Output VBAT
- Current Sensor Support (Scale=386 Offset=0)
- Mounting 30.5 x 30.5mm( 4mm hole diameter)
- Dimension 45.6(L) * 44(W) * 6.1mm(H)
- Weight 13.8g
-
