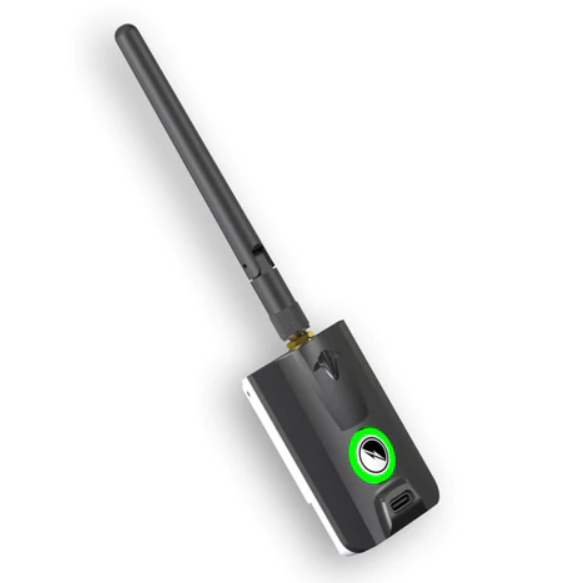

TBS Tracer Nano Transmitter Module

TBS TRACER NANO TX FEATURES

• 250Hz: Fastest available radio and telemetry link
• Brand new 2.4GHz technology not found in any other radio link
• 3ms end to end latency
• Crossfire engine for ultimate compatibility and functionality
• “JR” and “LITE” form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars and boats

TBS TRACER NANO TX SPECIFICATIONS:

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 5V – 9V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) – 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay

* output power modes may not be available due to local regulation limitations
